High Pressure Swivel Joints

100% interchangeable with original SPM swivels.

Swivels are available in 2″ through 4″ sizes and in pressure ratings up to 15,000psi. TianyuMfg swivels feature uniform wall thickness throughout to ensure consistent fluid flow and long service life.

TianyuMfg made swivel joints are 100% interchangeable with SPM in the following specifications:

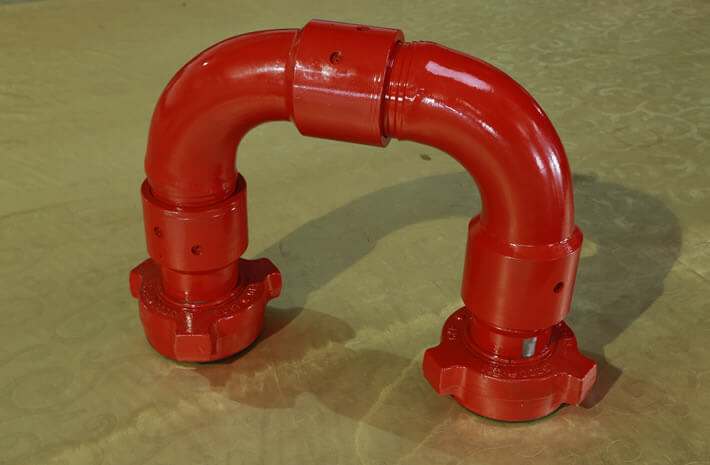

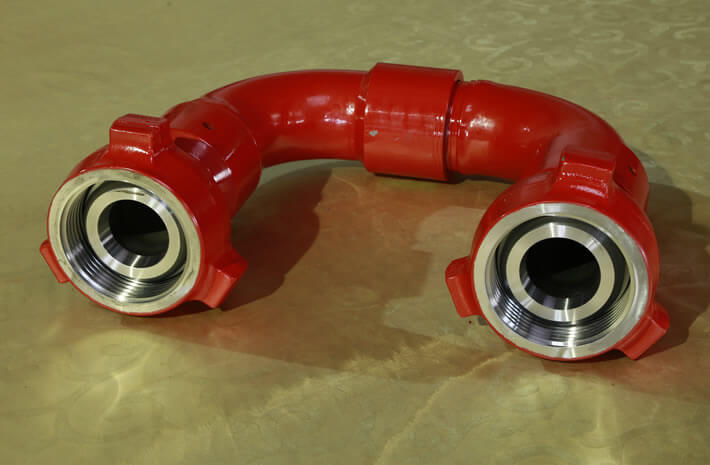

Style 10- MxF| Style 10- MxM

Style 20- MxF| Style 30- MxF

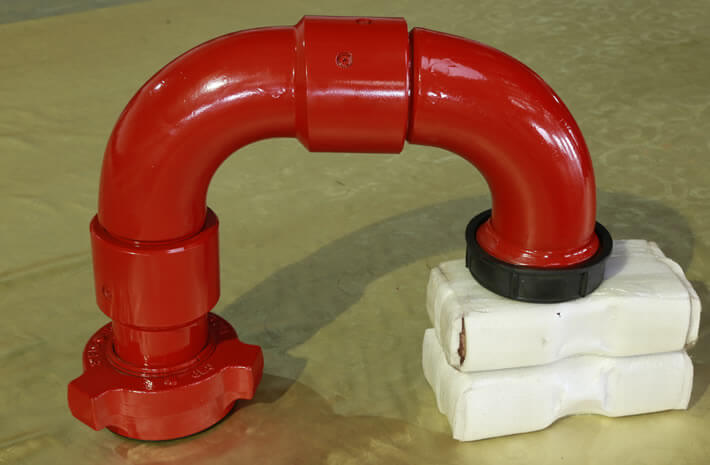

Style 50- MxF| Style 50- FxF

Style 60- MxF| Style 60- MxM

Style 80- MxF| Style 100- MxF

TianyuMfg supplies swivel joints interchangeable with the below part numbers:

Style	Connection Type	End Type	Temperature	Service Type	Part Number
2″ 1502 Swivel Joints (Standard Service)
10	Hammer Union	MxF	Low Temp	Standard	2A17135
10	Hammer Union	MxM	Low Temp	Standard	2A17205
20	Hammer Union	MxF	Low Temp	Standard	2A17271
30	Hammer Union	MxF	Low Temp	Standard	2A17297
50	Hammer Union	MxF	Low Temp	Standard	2A17139
50	Hammer Union	FxF	Low Temp	Standard	2A17213
50	Hammer Union	3″ 1502M x 2″ 1502F	Low Temp	Standard	2A17327
60	Hammer Union	MxM	Low Temp	Standard	2A17293
60	Hammer Union	MxF	Low Temp	Standard	2A17494
80	Hammer Union	MxF	Low Temp	Standard	2A17289
100	Hammer Union	MxM	Low Temp	Standard	2A17274
100	Hammer Union	MxF	Low Temp	Standard	2A17272
2″ 1502 Swivel Joints (H2S Service)
Style	Connection Type	End Type	Temperature	Service Type	Part Number
10	Hammer Union	MxF	Low Temp	H2S	2A17171
10	Hammer Union	MxM	Low Temp	H2S	2A17277
20	Hammer Union	MxF	Low Temp	H2S	2A17282
30	Hammer Union	MxF	Low Temp	H2S	2A17298
50	Hammer Union	MxF	Low Temp	H2S	2A17170
50	Hammer Union	FxF	Low Temp	H2S	2A17279
100	Hammer Union	MxF	Low Temp	H2S	2A17285
3″ 1502 Swivel Joints (Standard Service)
10	Hammer Union	MxF	Low Temp	Standard	2A17920
10	Hammer Union	MxM	Low Temp	Standard	2A28766
20	Hammer Union	MxF	Low Temp	Standard	2A17671
30	Hammer Union	MxF	Low Temp	Standard	2A17947
50	Hammer Union	MxF	Low Temp	Standard	2A17922
50	Hammer Union	FxF	Low Temp	Standard	2A17280
60	Hammer Union	MxM	Low Temp	Standard	2A17953
60	Hammer Union	MxF	Low Temp	Standard	2A17970
80	Hammer Union	MxF	Low Temp	Standard	2A17934
100	Hammer Union	MxM	Low Temp	Standard	2A17937
100	Hammer Union	MxF	Low Temp	Standard	2A17955
3″ 1502 Swivel Joints (H2S Service)
Style	Connection Type	End Type	Temperature	Service Type	Part Number
10	Hammer Union	MxF	Low Temp	H2S	2A17276
10	Hammer Union	MxM	Low Temp	H2S	2A17278
50	Hammer Union	MxF	Low Temp	H2S	2A17281
100	Hammer Union	MxF	Low Temp	H2S	2A17286
4″ 1002 Swivel Joints (Standard Service)
10	Hammer Union	MxF	Low Temp	Standard	2A17925
10	Hammer Union	MxM	Low Temp	Standard	2A17929
50	Hammer Union	MxF	Low Temp	Standard	2A17926
4″ 1502 Swivel Joints (Standard Service)
10	Hammer Union	MxF	Low Temp	Standard	2A17765
10	Hammer Union	MxM	Low Temp	Standard	2A17737
50	Hammer Union	MxF	Low Temp	Standard	2A17567

Note: Manufacturers’ names or trademarks used on this website are for identification purposes only. TianyuMfg is not affiliated with these companies.

Related Products

Multi Dimensional Connectors

Crosses

Wyes/Ys

Laterals

Long Radius Ells

90 Degree Ells

Tees

Manifold Skid

Pipe hoops

Integral pipes/ Pup joints in various length specs

Swivel Joints

FAQ: What is Swivel joint?

Swivel joint is designed from high performance alloy steels in different styles to handle various of oilfield fluids under different working pressure. It is basically a metal adapter with roller bearings.

FAQ: What are the sizes of swivel joints?

TianyuMfg manufactures swivel joint in sizes ranging from 2” to 4”, you can use them for rated working pressure of 25-140Mpa (3626psi-20000psi).

FAQ: What styles of swivel joints are available?

TianyuMfg provides both long radius and short radius swivel joints. The long radius swivel joint works better against fluid resistance and corrosion resistance with its smooth bore; while the short radius swivel joint can handle the applications where limited installation space and low pressure are required.
