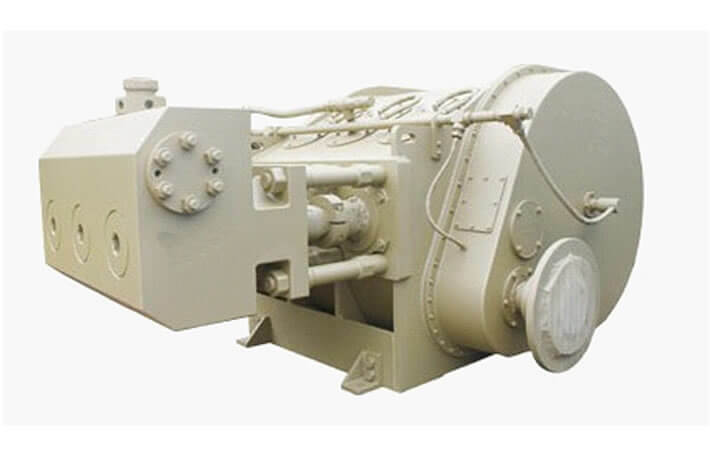

TWS2250 frac pump

TianyuMfg TWS2250 is manufactured in a lightweight design with great pressure and flow ratings. This pump has a long history in the field worldwide. We offer TWS2250 pump in the standard plunger sizes and also particularly required sizes including 3 3/4″ and 5 3/4″.

Stroke: 8 inches
Rated Max. Brake HP: 2,250BHP (1,678KW)
Maxim Rod Load: 238,570lbs
Gear Ratio:6.353:1
Pump Weight: 11,000 lbs approx.
Fluid ends plunger diameter available: 3 3/4″ (95.25mm)/ 4” (101.6mm)/ 4 1/2” (114.3mm)/ 5” (124mm)/ 5 1/2″(139.70mm)/ 5 3/4″(146.05mm)
