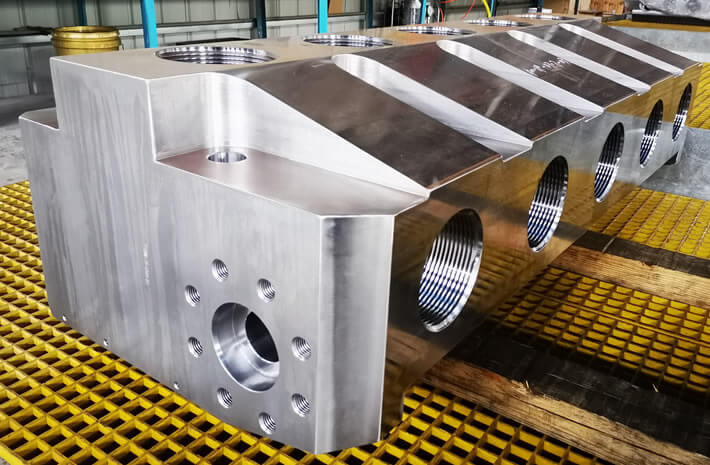

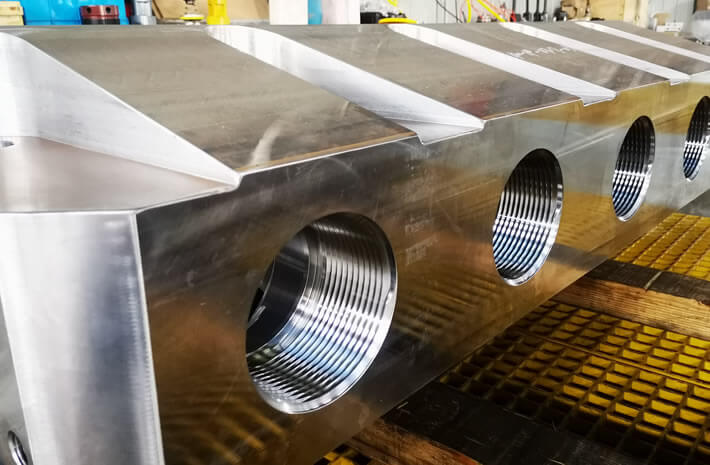

QWS2800 Fluid End

TianyuMfg QWS2800 fluid end is designed and manufactured to handle the harshest frac applications.

It is quintuplex 5- plunger fluid end and has three plunger sizes at your choice, 4”, 4 1/2”, and 5”. Carbon steel and stainless steel material are both available to make the QWS2800 fluid end at your choice, high quality raw materials are used to ensure improved durability of the fluid ends.

Stroke: 8”
Material: Carbon Steel/Stainless Steel
Plunger No.: 5
Plunger size: 4”,4.5”,5”
Load Weight: 7,054LB
Approx. Size: 63”x20”x24”(LXWXH)
Plunger sizes available: 4”, 4 1/2”, and 5”
