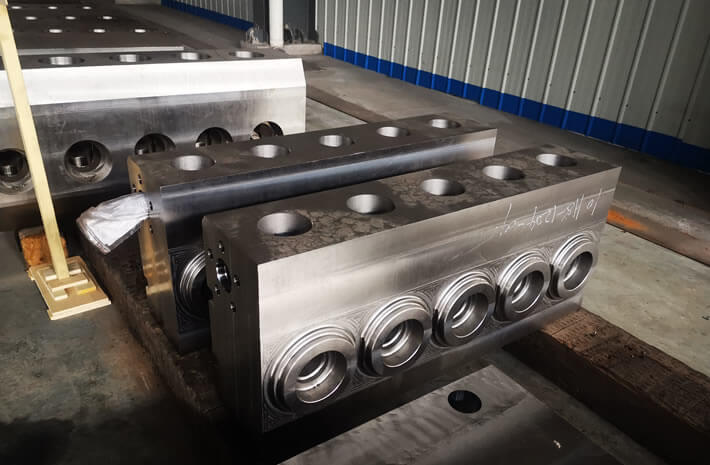

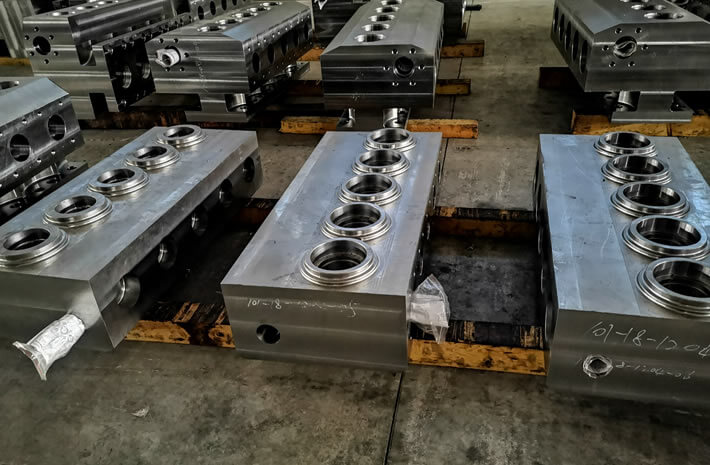

QWS1000 fluid end
TianyuMfg manufactures high-quality QWS1000 fluid end 100% compatible with your current QWS1000 pumps. It is designed with easy maintenance and could save you downtime significantly in your cementing, acidizing, gravel packing, and snubbing applications.
TianyuMfg QWS1000 fluid ends are available in standard plunger sizes, 4″ and 4 1/2″. We also manufacture QWS1000 fluid ends in particular plunger sizes including 3″, 3 1/2″.
No matter whether you need carbon steel made or stainless steel made QWS1000 fluid ends, in just bare block or fully dressed, TianyuMfg will be definitely of great help to you.
| Plunger Diameter | Output per Rev | Displacement at Pump Stokers Per Minute | |||||||||
| 50 | 100 | 150 | 200 | 250 | |||||||
| In | Liter per Rev | LPM | Mpa | LPM | Mpa | LPM | Mpa | LPM | Mpa | LPM | Mpa |
| 4 | 4.9422 | 247.11 | 98.113 | 494.22 | 61.375 | 741.33 | 40.905 | 988.44 | 30.679 | 1235.55 | 24.543 |
| 4 1/2 | 6.255 | 312.75 | 77.221 | 625.5 | 48.48 | 938.25 | 32.32 | 1251 | 24.24 | 1563.75 | 19.392 |
| Output Power (ME=90%) | 449KW | 562KW | 562KW | 562KW | 562KW | ||||||
All TianyuMfg made Quintuplex 1000hp spare parts are 100% interchangeable with original makes.
Below is the BOM drawing of TianyuMfg QWS1000 fluid end in 3 1.2″ plunger size for your reference.
