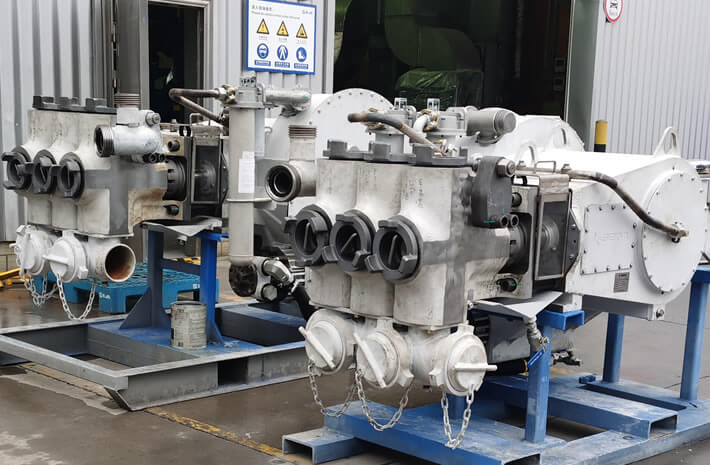

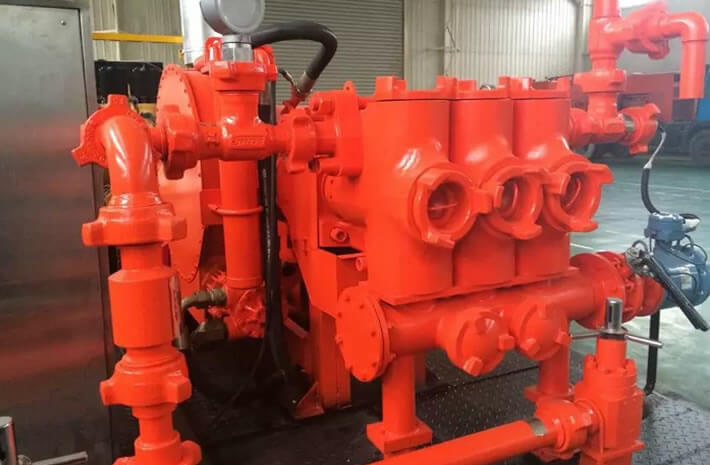

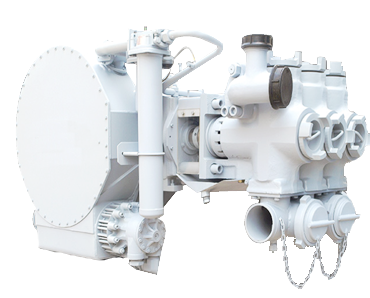

TY-HT400 Well service pump

Equivalent to SJS/HALLIBURTON MADE HT400 pump.

TY400 well service pump is equivalent to Halliburton made HT400 pump. It is designed to handle various duty well applications including acidizing, cementing, fracturing and gravel packing. It features a compact and lightweight design; you can airlift it easily into remote areas.

Stroke length: 8 inches
Rated Max. Brake HP : 600BHP (447KW)
Maxim Input Torque: 9782N.m
Gear Ratio: 8.6:1
Pump Weight: 6500lbs approx.
Fluid end sizes available in plunger diamater: 3 3/8” (85.7mm), 4” (101.6mm), 4.5” (114.3mm), 5” (127.0mm)

TY-HT400 well service pump, same as HT400 triplex pump, is a horizontal single acting reciprocating pump and rated at 600 brake horsepower.

TianyuMfg fabricates this pump with high strength raw materials to help improve its well service performance, including durable forging -aluminum connecting rod, customized discharge flanges, pressure-lubricated crankshaft, tough crosshead guides, and wrist pin bearings. We have enhanced the design of the fluid end as well with high-performance packing sets, You can also replace the three separate fluid end sections individually if needed.

TianyuMfg manufactures and supplies all needed spare parts for HT400 pump power end refurbishment.

Here list just a few frequently required parts among our customers. Pls contact TianyuMfg if you need other parts.

	Part No	Legacy No	Qty	Description
Crankshaft Main Bearing Assembly
1	100058283	316.13503	2	Bearing, Main outboard
2	100058282	316.13501	2	Bearing, Main inboard
Crosshead and connecting Rod Subassembly
1	100011758	317.55214	3	Bearing, bottom, connecting rod, +0.125, HQ2000
2	100011759	317.55215	3	Bearing, top, connecting rod, +0.125, HQ2000
3	100058186	316.11913	3	Bushing, connecting- Rod pin
4	10002713	316.11829	3	Pin crosshead
5	100058175	316.11832	3	Shoe bottom, crosshead
6	100138092	70.4319	18	Screw, FH cap, 1/4-in, 20NC *5/8-in., hex socket
Crosshead slide subassembly
1	100058162	316.11803	3	slide-bottom crosshead
Ring gear subassembly(b)
1	100058120	316.1154	2	Thrust cage assembly for 316.11543
2	100058122	316.11543	1	Bearing gear support
Ring gear subassembly(a)
1	100058111	316.11524	24	Screw, cap, Ring, Mounting, gear clamp
2	100058125	316.11548	24	Washer, Left-Hand Gear Bearing clamp
3	100058105	316.11519	1	Bushing, spider spacer
Worm Gear Thrust-End Assembly
1	100058141	316.11627	1	Bearing, Thrust-End, worm shaft
2	100015435	8.34062	1	O Ring, 90D, 8, 7 3/4-in, 8 1/8-in.
3	100013727	8.34061	1	O-Ring, 90 Duro 7 3/4* 7 1/2 * 1/8, 568-264
4	100058142	316.11629	1	Bearing, Thrust, Stack Worm
5	100058144	316.11633	1	Key, Worm-Thurst Bearing
6	100058144	316.11633	1	Bushing, worm thrust bearing
Worm Gear Drive-End Assembly
1	100058140	316.11625	1	Bearing, Drive End-Worm shaft
2	100029186	70.46241	1	Seal, Oil, 53-in * 7448, FI, 4-in. B * 5 1/2-in, OD * 1/2-in, wide

Note: Manufacturers’ names or trademarks used on this website are for identification purposes only. TianyuMfg is not affiliated with these companies.

TianyuMfg can assist you to finish your HT400 pump refurbishment with all necessary spare parts.

Here list just a few frequently required parts among our customers. Contact TianyuMfg to get your job done!

	Plunger Size	No	Qty	Part description
Discharge Valve assembly
1	4 In	316.21052	3	Gasket valve cover
2	4 In	316.2108	3	Spring, Valve
3	4 In	316.21006	3	Insert, valve, STD, urethane
4	4 In	316.21048	3	Liner, valve, Acid, urethane
5	4 In	316.21008	3	Seat valve, tapered
6	4 In	316.22004	6	Insert, 2 PC, Bushing, valve guide
7	4 In	316.22005	6	Liner, 2 PC Bushing, valve guide
8	4 In	316.21096	3	Retainer, guide bushing
9	4 In	8.34037	3	O ring
10	4 In	316.22051	3	Ring, spacer, valve cover
Suction Valve assembly
1	4 In	316.21006	3	Insert, valve, STD, urethane
2	4 In	316.21048	3	Insert, valve, Acid, urethane
3	4 In	316.21008	3	Seat valve, tapered
4	4 In	8.34037	3	O ring
5	4 In	316.2108	3	Spring, Valve
6	4 In	316.22004	6	Insert, 2 PC, Bushing, valve guide
7	4 In	316.21048	3	Liner, valve, Acid, urethane
8	4 In	316.25233	6	Boot, suction and stop
9	4 In	316.22977	3	Retainer stop and spring
10	4 In	316.21096	3	Retainer guide bushing
Fluid End Assembly
1			3	Oring, suction module manifold
2	4 In	316.223	3	Seal, plunger nose assembly
3	4 In	316.21051	3	Ring, spacer, cover
4	4 In	316.21052	3	Gasket, cover
5	4 In	316.2547	6	Seal discharge passage
6	4 In	316.22294	3	Plunge, hard surface
Packing Nut and packing subassembly
1	4 In	316.2238	3	Sleeve, wiper gland
2	4 In	316.22396	3	carrier, seal & packing
3	4 In	8.34045	3	O-Ring 90D
4	4 In	316.22393	3	Ring, back up, packing
5	4 In	316.22532	1	Packing set, STD, Srv, 3 Rings
6	4 In	316.22525	1	Packing set, Acid, Srv, 3 Rings
7	4 In	316.22501	3	Ring, header
8	4 In	316.22503	3	Adapter, header ring
9	4 In	316.22395	3	Seal, lube, packing
Discharge Valve assembly
1	4.5 In		6	Gasket valve cover
2	4.5 In		6	Spring, Valve
3	4.5 In		6	Insert, valve, STD, urethane
4	4.5 In		6	Liner, valve, Acid, urethane
5	4.5 In		6	Seat valve, tapered
6	4.5 In		12	Insert, 2 PC, Bushing, valve guide
7	4.5 In		12	Liner, 2 PC Bushing, valve guide
8	4.5 In		6	Retainer, guide bushing
9	4.5 In		6	O ring
10	4.5 In		6	Ring, spacer, valve cover
Suction Valve assembly
1	4.5 In		6	Insert, valve, STD, urethane
2	4.5 In		6	Insert, valve, Acid, urethane
3	4.5 In		6	Seat valve, tapered
4	4.5 In		6	O ring
5	4.5 In		6	Spring, Vlave
6	4.5 In		12	Inser, 2 PC, Bushing, valve guide
7	4.5 In		6	Liner, valve, Acid, urethane
8	4.5 In		12	Boot, suction and stop
9	4.5 In		6	Retainer stop and spring
10	4.5 In		6	Retainer guide bushing
Fluid End Assembly
1	4.5 In		6	Oring, suction module manifold
2	4.5 In		6	Seal, plunger nose assembly
3	4.5 In		6	Ring, spacer, cover
4	4.5 In		6	Gasket, cover
5	4.5 In		12	Seal discharge passage
6	4.5 In		6	Plunge, hard surface
Packing Nut and packing subassembly
1	4.5 In		6	Sleeve, wiper gland
2	4.5 In		6	carrier, seal & packing
3	4.5 In		6	O-Ring 90D
4	4.5 In		6	Ring, back up, packing
5	4.5 In		2	Packing set, STD, Srv, 3 Rings
6	4.5 In		2	Packing set, Acid, Srv, 3 Rings
7	4.5 In		6	Ring, header
8	4.5 In		6	Adapter, header ring
9	4.5 In		6	Seal, lube, packing

Note: Manufacturers’ names or trademarks used on this website are for identification purposes only. TianyuMfg is not affiliated with these companies.

Related Products

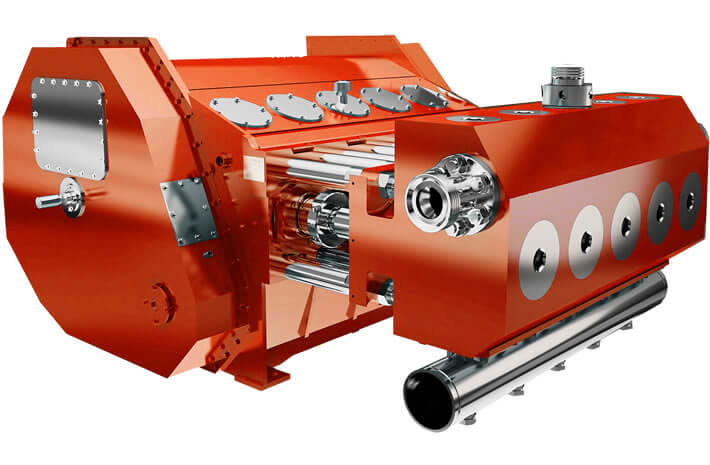

QWS2500 Frac Pump

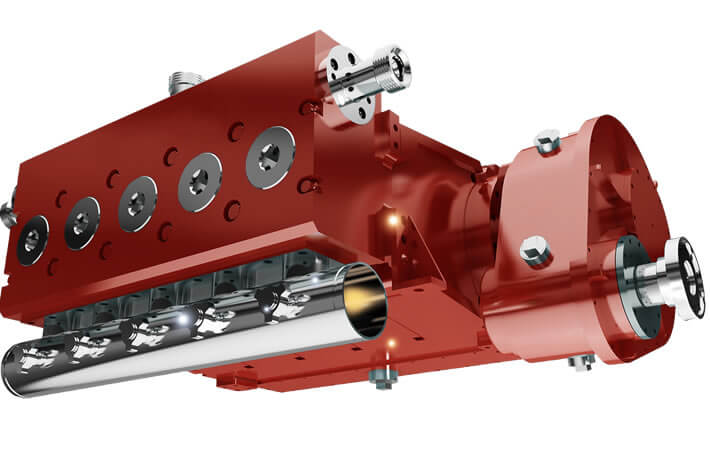

QWS1000 Well Service Pump

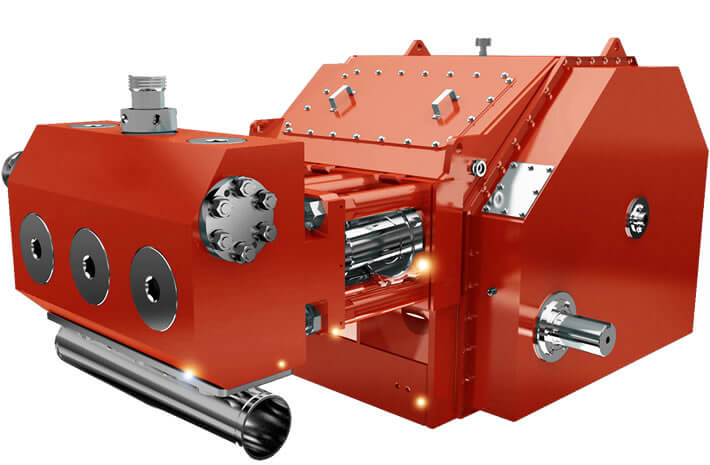

TWS2250 frac pump

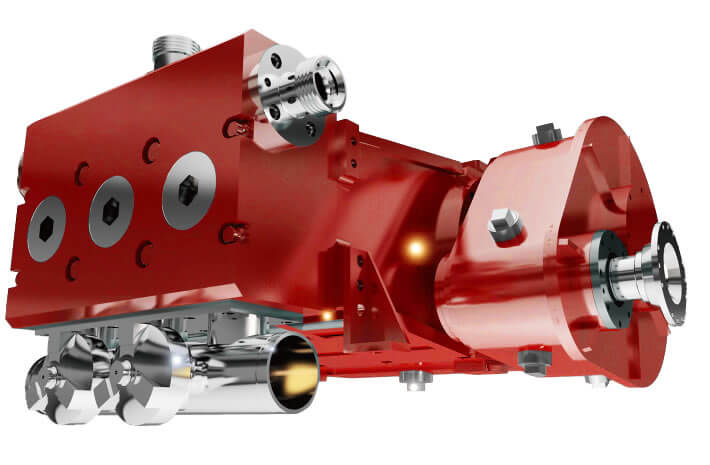

TWS600 Well service pump

TY-HT400 Pump: Complete FAQ Guide about TY-HT400 Pump

TianyunMfg TY- HT400 pump is an efficient module. The alphabets HT represent horizontal triples and 400 denotes the rating of its horsepower, which is 400 horsepower, TY-HT400 pump is designed and manufactured based on the original design of Halliburton HT400 triplex pump which was introduced in 1957. The design of this pump has been altered and adapted to make it suitable for operation. Some of the variants of this pump have a capacity of up to 800 horsepower after decades of strenuous up-gradation. The pump has been proven efficient for long-term use in operations such as cementing, acidizing, water and cement works, and fracturing.

TianyuMfg TY-HT400 pump parts and components are 100% interchangeable with Halliburton HT400 triplex pump and Halliburton grizzly pump, they all have three fluid end sections and are horizontal triplex and manufactured with 100 percent pure forged steel.

All the components of TY-HT400 pump are manufactured keeping durability and high efficacy in mind for handling arduous operations like cementing and pumping.

TianyunMfg HT-400 pump is equivalent in size to the HT-400 pumps manufactured by other manufacturers like Halliburton, SJS Serva. It is meticulously manufactured to perform operations like cementing, acidizing, fracturing, and aggregate packing. It wields a vigorous and portable design, which is able to be shipped anywhere, including far-flung and remote locations.

These FAQs shall be able to answer all the queries related to the TianyunMfg HT-400 pump.

What are the Features of TY-HT400 Pump?
What sizes of Plunger units are manufactured for TY-HT400 Pump by TianyunMfg?
What are the applications of TY-HT400 Pump?
What are the benefits of using TY-HT400 Pump?
What’s the maximum pressure of TY-HT400 Pump?
What Power End components does TY-HT400 Pump have?
How to test TY-HT400 Pump?
What are the Consumables of TY-HT400 Fluid End?
How to Remove the Valve Seat of TY-HT400 Pump?

What are the Features of TY-HT400 triplex pump?

TianyunMfg HT-400 pump comes in handy particularly when accurate pumping levels and controllability is the ultimate need. The entire components and parts which a TY HT-400 pump possess are replaceable. There is a wide variety of fluid ends with which a pump could be attached in tandem, depending on the specifications needed for a specific operation.

What sizes of Plunger are manufactured for TY-HT400 Pump by TianyunMfg?

The following sizes are manufactured for the TY-HT400 pump by TianyunMfg. The sizes are used for specific purposes like simulation and drilling, for simulation purposes the sizes include 6 inches, 5 inches, 4.5 inches, 4 inches, and 3.37 inches. For drilling service, the size ranges from 6 inches to 3.5 inches.

You can also read the below table:

Simulation/Cementing Service
Plunger Dia., Inches	6 in.	5 in.	4 1/2 in.	4 in.	3 3/8 in.

Drilling Industrial Service
Plunger Dia., Inches	6 in.	5 in.	4 1/2 in.	4 in.	3 3/8 in.

What are the Applications of TY-HT400 Pump?

The applications of TY-HT400 pump include:

Well pumping
Cementing of Wells
Fracturing and
Acidizing

What are the Benefits of using TY-HT400 Pump?

Using a TianyunMfg TY-HT400 well service pump, you will have benefits that include:

Fuel efficiency by employing an efficient diesel-driven technology.
High fuel carrying capacity of up to 130 gallons.
Able to pump at extreme pressures of up to 20,000 psi or more.
Consignment is relatively easy and can be shifted pretty easily and quickly due to the high portability.
The durable and long-lasting module which will last for a longer stretch of time.
Triple fluid end attachments.

What’s the Maximum Pressure of TY-HT400 Pump?

The peak pressure for the operability of the TY-HT400 pump varies depending on what kind of operation is being performed, for cementing operations the peak pressure is about 9,000 psi to 20,000 psi, and for industrial level drilling services the pressure ranges from 4500 psi to 10,000 psi.

You can also read the below table to understand the Maximum Pressure:

Simulation/Cementing Service
Plunger diameter inches	6in	5in	4 1/2”	4in	3 3/8”
Maximum Pressure	6,250PSI	9,000PSI	11,200PSI	14,000PSI	20,000PSI

Drilling Industrial Service
Plunger diameter inches	6in	5in	4 1/2”	4in	3 3/8”
Maximum Pressure	3,000PSI	4,500PSI	5,600PSI	7,000PSI	10,000PSI

What Power End Components does TianyuMfg offer for HT400 refurbishment?

Here list some frequently needed power end components for HT400 pump refurbishment and repair works:

Gear assembly
Ring gear assembly
Crosshead and connecting rod sub-assembly
Crosshead slide sub-assembly
Main bearings for outboard and inboard
Crankshaft
Connecting Rods

Contact TianyuMfg to support your HT400 power end repair work.

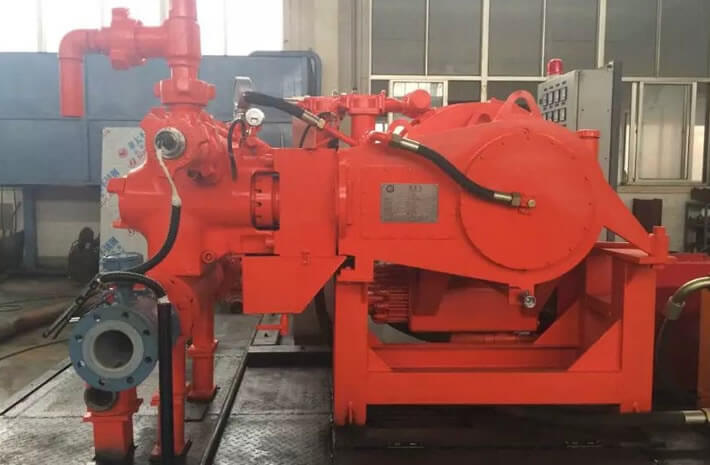

How to Test TY-HT400 Pump?

After manufacturing the TianyunMfg TY-HT400 pump undergoes a strenuous testing procedure to ensure the best possible efficacy. These tests are necessary before moving the pump to the pumping site to avoid any mishap. The Chambers for fluid end are tested under extreme pressures which are far beyond the usual pressure threshold on the ground. After the assembly of fluid end Chambers, they are tested once again under extreme pressure conditions. The pump is tested for the third time when it is attached to the power end paraphernalia. Power end modules also undergo strenuous testing in the TianyuMfg testing facility.

After an hour of rigorous testing under increasing pressure and speed, the pump is assembled with the rest of the unit. After the culmination of testing at the testing site, the pump is further tested during the final inspection.

What are the Consumables of TY-HT400 Fluid End?

TianyunMfg TY-HT400 triplex pump has some frequently needed replaceable components. These parts can be replaced or added according to the specifications of the required operation. The most frequently needed replaceable parts of TY-HT400 triplex pump are as follows:

Discharge Valve Subassembly
- Valve, Frac
- Insert, Valve
- Spring, lock, suction stop
- Retainer, stop and spring
- Liner, 2pc bushing, valve guide
- Seat Valve, Tapered
- O ring
Packing Nut and Packing Subassembly
- Sleeve, wiper gland
- Carrier, Seal&Packing
- O-ring, 90D
- Ring, backup, packing
- Packing set
- Ring, header
- Adapter, header ring
- Seal, lube, packing
Push Rod Subassembly
Fluid End Module
- Fluid end section
- Stud, fluid end to power end
- Washer, lock, suction manifold
- Flange, discharge, blank
Suction Valve Subassembly
Plunger/Cylinder Head Cover Subassembly
- Retainer, cover
- Gasket, cover
- Nose, plunger
- Seal, plunger nose assembly
- Plunger, hard surface
- Tie rod, plunger

Contact TianyuMfg if you ever need any consumables on HT400 pump parts list.

How to Remove the Valve Seat of HT400 Pump?

TianyuMfg supplies specific valve seat puller for HT400 valve seats replacement jobs. TianyuMfg HT400 valve seat puller consists of various components including clapper, lead screw, hydraulic actuator, and hand pump, and nut.

TianyuMfg valve seat puller is very easy to use and its maintenance is also relatively simple and easy. All you have to do is to insert the clapper inside the valve seat and screw the lead screws, then insert the actuator through the lead screw and place it on the cylinder, Screw the nuts and turn on the hand pump, this way you can remove the valve seats with ease.
